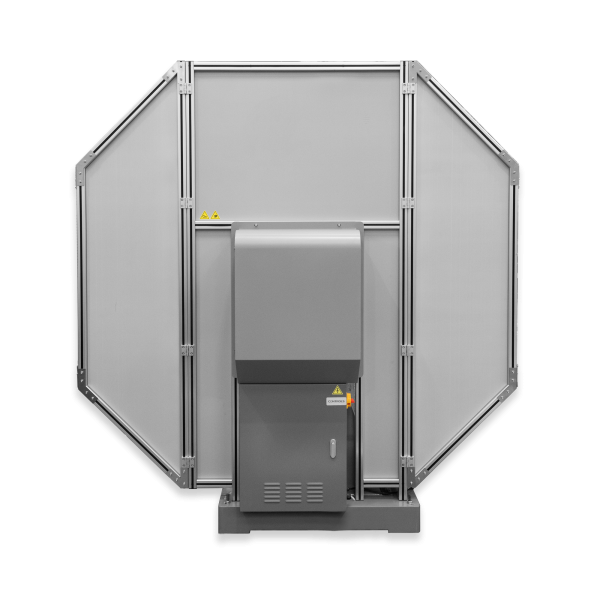

Charpy Pendulum Impact Test

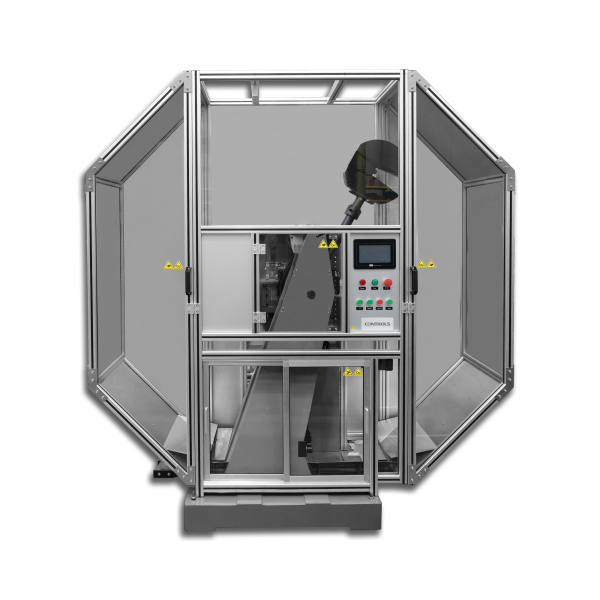

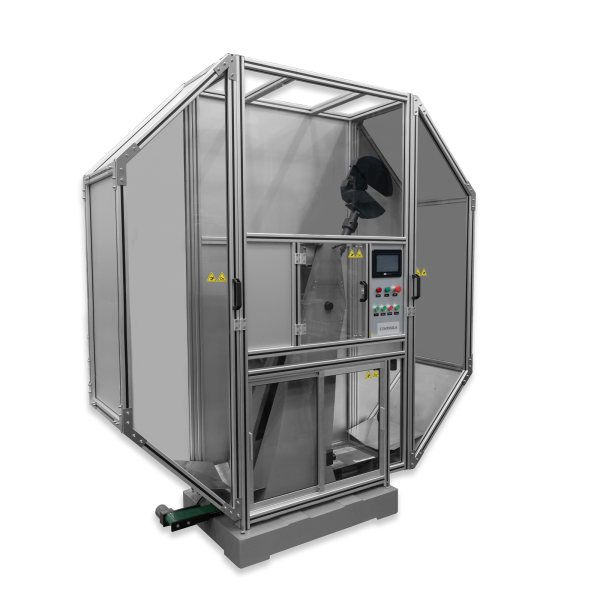

The machine can perform Charpy impact test with varying energy levels and is equipped with advanced features such as automatic electro-magnetic clutch and release mechanism of the impact hammer, automatic broken specimen recycling system and fully enclosed protective cover for operator safety
The Charpy Pendulum is designed to measure the impact resistance of metals and other materials, conforming to international standards. It features a robust design, precision engineering, and user-friendly operation for efficient testing. he machine can perform Charpy impact test with varying energy levels and is equipped with advanced features such as automatic electro-magnetic clutch and release mechanism of the impact hammer, automatic broken specimen recycling system and fully enclosed protective cover for operator safety.
Key Features:
- Wide digital touchscreen display.
- One-body frame design of pendulum seat and column, ideal for high stability and rigidity.
- High-rigidity pendulum arm prevents axial and transverse vibrations.
- Simple interchange of impact hammers to satisfy different impact energy requirements.
- Electromagnetic clutching and release of pendulum hammer to damp harmful vibrations.
- High-rigidity protective enclosure with safety hatch. When hatch is open most functions are disabled.

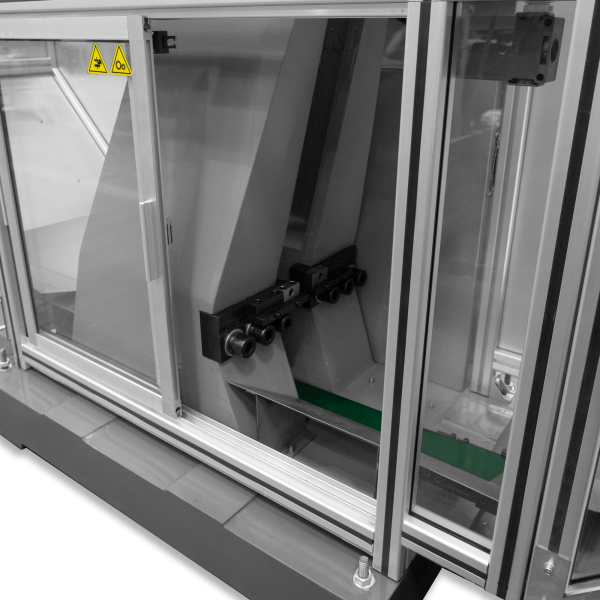

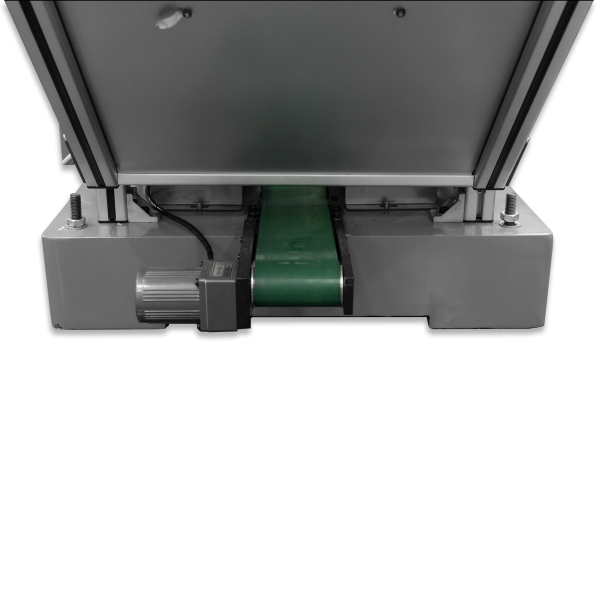

- Motorized conveyor belt for broken specimen collection.
Each Charpy system already includes:

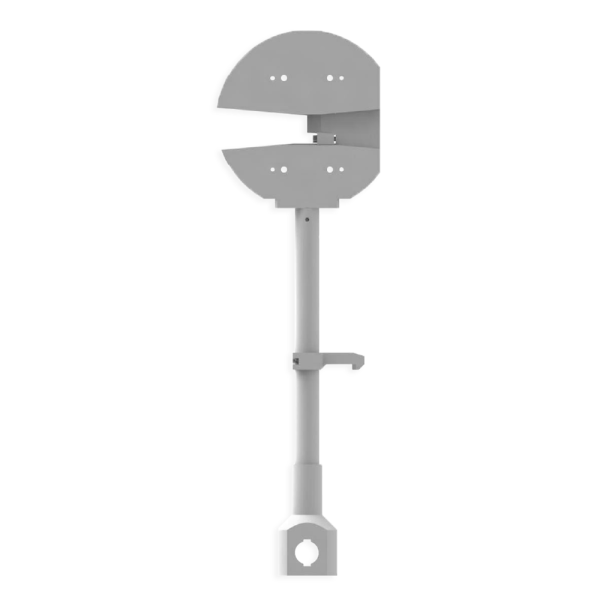

- C9913/Hxx (30 – 45 – 75): Charpy impact hammer of the selected energy (300J, 450J, 750J).

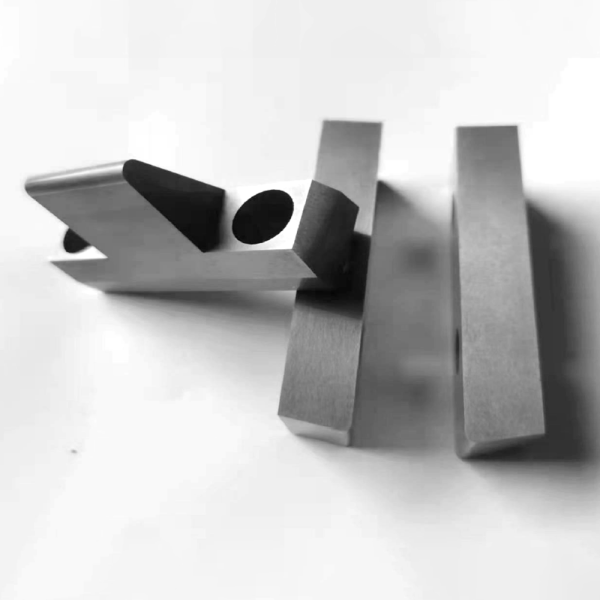

- C9913/SR2: R2 impact knife to EN ISO 148 and UNI 10045-2.

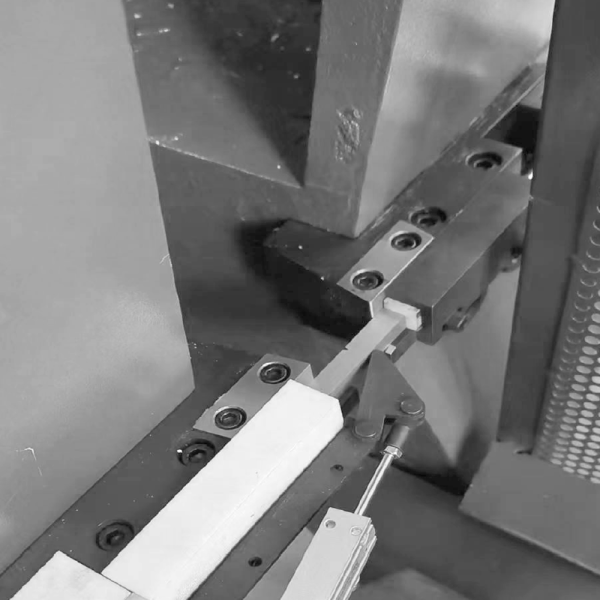

- C9913/SPT: supports for Charpy specimens.

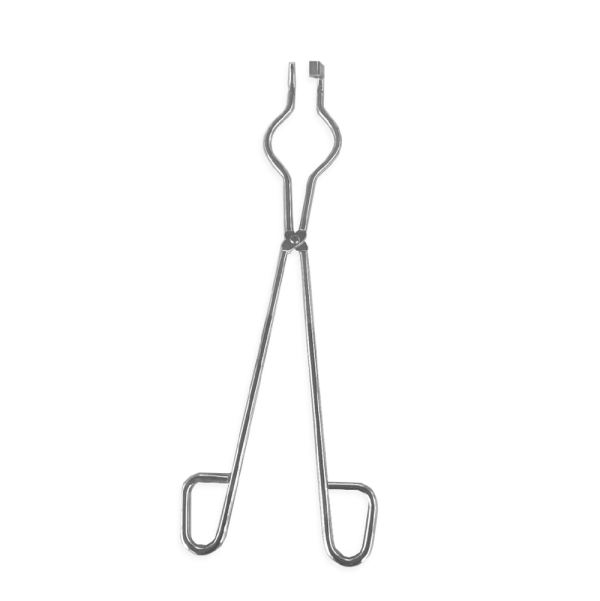

- C9913/PLR: centering pliers for specimen positioning.
| Model | C9913/30 | C9913/45 | C9913/75 |
| Maximum impact energy | 300J | 450J | 750J |
| Optional pendulums | 150J | 150J – 300J | 150J – 300J – 450J – 600J |
| Impact speed | 5.24m/s | 5.24m/s | 5.24m/s |
| Angle resolution | 0.025° | 0.025° | 0.025° |
| Distance between pendulum shaft and impact point | 750mm | 750mm | 750mm |
| Striking angle | 150° | 150° | 150° |
| Support span | 40mm | 40mm | 40mm |
| Radius of support edges | 1.5mm | 1.5mm | 1.5mm |
| Tapering angle of support edges | 11° | 11° | 11° |
| Striking edge radius | 2mm | 2mm | 2mm |
| Striking thickness | 16mm | 16mm | 16mm |
| Striking tip angle | 30° | 30° | 30° |
| Standard specimen sizes | 55x10x10mm 55x10x7.5mm 55x10x5.5mm | 55x10x10mm 55x10x7.5mm 55x10x5.5mm | 55x10x10mm 55x10x7.5mm 55x10x5.5mm |
| Power supply | 380VAC 50Hz 3Ph | 380VAC 50Hz 3Ph | 380VAC 50Hz 3Ph |
| Overall dimensions | 2220x2220x900mm | 2220x2220x900mm | 2220x2220x900mm |
| Net weight | 1000kg | 1000kg | 1000kg |
